TEFO92UBB

TEFO92UBB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Trough Ends With Feet - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

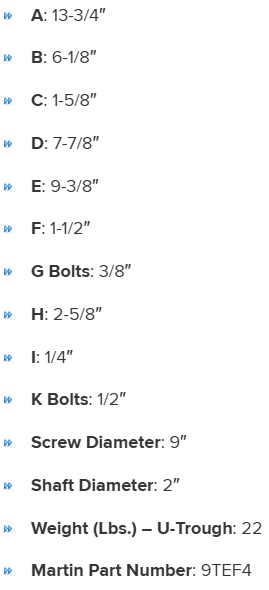

Specifications

A

13-3/4"
C

1-5/8"
J

21-1/4"
K Bolts

1/2"
L

9"
Martin Part Number

9TEF4
B

6-1/8"
D

7-7/8"
Screw Diameter

9"
Shaft Diameter

2"
E

9-3/8"
F

1-1/2"
G Bolts

3/8"
H

2-5/8"
Weight (Lbs.) - Flared Trough

27
I

1/4"
Weight (Lbs.) - U-Trough

22
