ASME Pressure Vessels

Many bulk solids processing applications require mixing of solids and liquids under both pressure and temperature to achieve a desired finished product. Pressure or vacuum can be applied to the internal portion of the vessel where the bulk solids are being processed. The bulk solids can be heated or cooled as required by external jackets that are integral to the vessel walls. KWS coded pressure vessels combine our knowledge of conveying and mixing with the science of heat transfer.

Achieving the specified exit temperature of the product is accomplished by calculating the required surface area of the vessel jacket and designing the system flow to match the heat load requirements of the application. Heat is transferred indirectly to or from the product by introducing a heat transfer medium such as cool water, hot oil or steam through the special vessel jacket.

Industry Solutions

48-Inch Diameter Ribbon for Mixing and Processing Bulk Solids

ASME Pressure Vessels - KWS Manufacturing

Key Process Variables Used for Design

  • Residence Time of Mixture
  • Volume of Batch
  • Inlet and Exit Temperatures of Mixture
  • Internal Vessel Pressure Requirements

KWS designs and manufactures ASME Pressure Vessels to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Power and Wastewater Treatment.

Two 48-Inch Diameter Pressure Vessels

ASME Pressure Vessels - KWS Manufacturing

Available Features / Options

  • Available Construction – Carbon Steel, Stainless Steel and High-Nickel Alloys
  • Unique Vessel Design For Maximized Surface Area and Heat Transfer
  • Totally Enclosed Construction For Dust and Vapor-Tight Requirements
  • Flight Configurations Available For Aggressive Mixing and Agitating
  • Custom Engineered For Your Specific Application
  • Single Ribbon Batch Mixer / Reactors
  • Multiple-Ribbon Processors – Twin and Quad
  • Custom Ribbon/Plow Designs

Available Configurations

As a screw conveyor manufacturer, KWS is unique because we are certified by ASME to build and repair coded pressure vessels. All KWS Pressure Vessels are manufactured in accordance with the ASME Boiler and Pressure Vessel Code. In addition, every component and assembly is manufactured in the USA by highly skilled craftsmen in an ISO 9001:2015 certified facility.


News & Articles

Pressure Vessel Resources

Problem Solvers for Pressure Vessels

Filter Problem Solvers

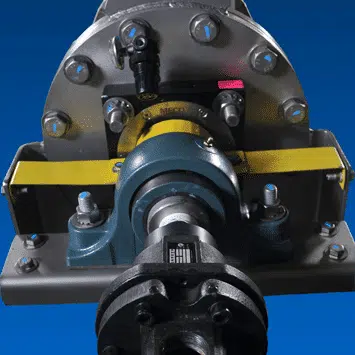

Food-Grade Pressure Vessel for Thermally Processing and Conveying Flour-Like Materials

Food-Grade Pressure Vessel for Thermally Processing and Conveying Flour-Like Materials - KWS Manufacturing

KWS is the only screw conveyor manufacturer with certification to manufacture pressure vessels to the…

Read More

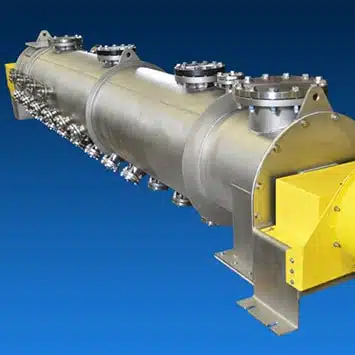

Design-Build System for Prototype Gasification Process

Design-Build System for Prototype Gasification Process - KWS Manufacturing

KWS designed and manufactured every piece of mechanical equipment on the project from the initial feed…

Read More

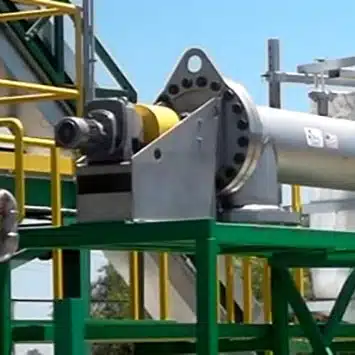

Biomass Screw Conveyors and High Pressure, High Temperature Reactors
