TEFO9112UBBRB

TEFO9112UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for TEFO9112UBBRB

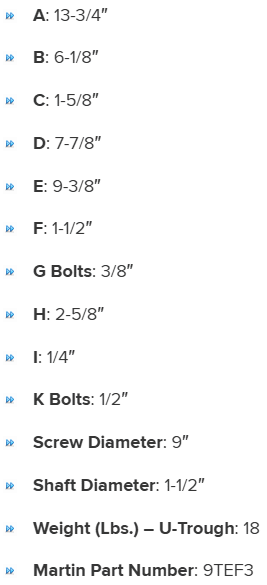

Specifications

A

13-3/4"

J

21-1/4"

C

1-5/8"

K Bolts

1/2"

L

9"

Martin Part Number

9TEF3

B

6-1/8"

D

7-7/8"

Screw Diameter

9"

Shaft Diameter

1-1/2"

E

9-3/8"

F

1-1/2"

G Bolts

3/8"

H

2-5/8"

Weight (Lbs.) - Flared Trough

22

Weight (Lbs.) - U-Trough

18

I

1/4"
