ISF9

ISF9 is a Inlet Spouts product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
inlet-spouts

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

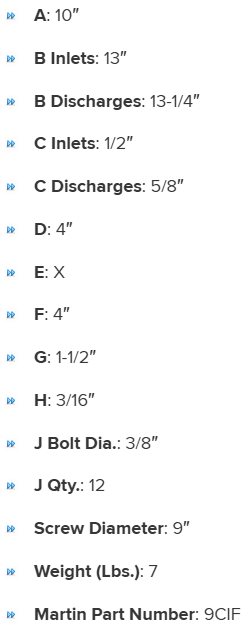

Specifications

A

10"
J Bolt Dia.

3/8"
J Qty.

12
C Discharges

5/8"
C Inlets

1/2"
Martin Part Number

9CIF
B Discharges

13-1/4"
D

4"
B Inlets

13"
Screw Diameter

9"
E

X
F

4"
G

1-1/2"
Weight (Lbs.)

7
H

3/16"
