12HF512R

12HF512R is a Helicoid Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for 12HF512R

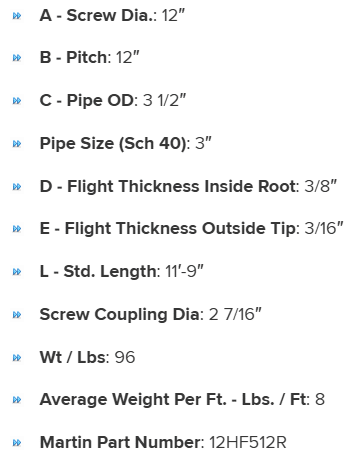

Specifications

A - Diameter Tolerance Minus

5/16"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

A - Screw Dia.

12"

Martin Part Number

12HF512R

Average Weight Per Ft. - Lbs./Ft.

8

Pipe Sch 40 - C- Pipe OD

3 1/2"

Pipe Sch 40 - Size

3"

D - Flight Thcknss Inside Root

3/8"

Screw Coupling Dia

2 7/16"

B - Pitch

12"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1"

E - Flight Thcknss Outside Tip

3/16"

Wt / Lbs

96
