HGB2262NR

HGB2262NR is a Nylatron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2262NR

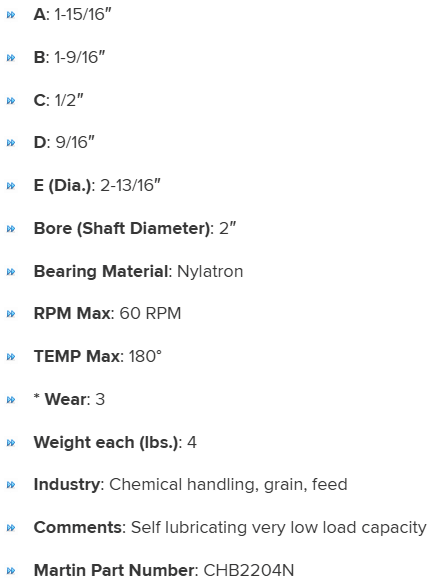

Specifications

C

1/2"

A

1-15/16"

Martin Part Number

CHB2204N

Comments

Self lubricating very low load capacity

B

1-9/16"

D

9/16"

RPM Max

60 RPM

Bearing Material

Nylatron

TEMP Max

180°

E (Dia.)

2-13/16"

Bore (Shaft Diameter)

2"

* Wear

3

Weight each (lbs.)

4

Industry

Chemical handling, grain, feed
