HGB2262G

HGB2262G is a Gatke Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2262G

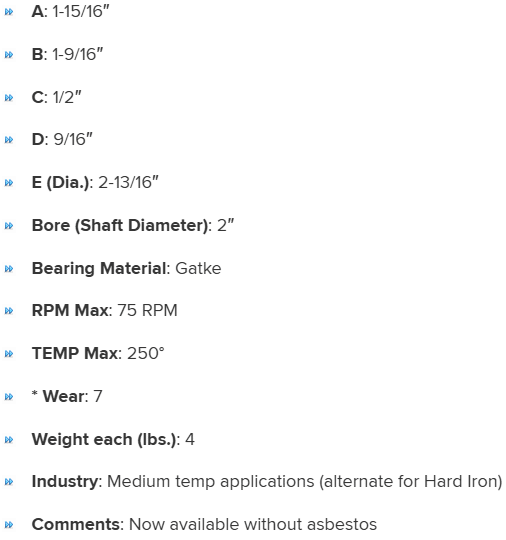

Specifications

A

1-15/16"

C

1/2"

Comments

Now available without asbestos

B

1-9/16"

D

9/16"

RPM Max

75 RPM

Bearing Material

Gatke

TEMP Max

250°

E (Dia.)

2-13/16"

Bore (Shaft Diameter)

2"

* Wear

7

Weight each (lbs.)

4

Industry

Medium temp applications (alternate for Hard Iron)
