HGB2162BR

HGB2162BR is a Bronze Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGB2162BR

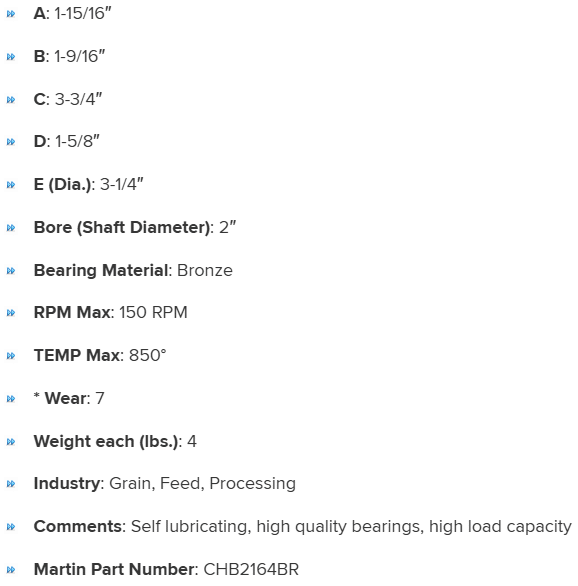

Specifications

C

3-3/4"

A

1-15/16"

Martin Part Number

CHB2164BR

Comments

Self lubricating, high quality bearings, high load capacity

B

1-9/16"

D

1-5/8"

RPM Max

150 RPM

Bearing Material

Bronze

TEMP Max

850°

E (Dia.)

3-1/4"

Bore (Shaft Diameter)

2"

* Wear

7

Weight each (lbs.)

4

Industry

Grain, Feed, Processing
