End Bearings - Flanged Roller Bearing

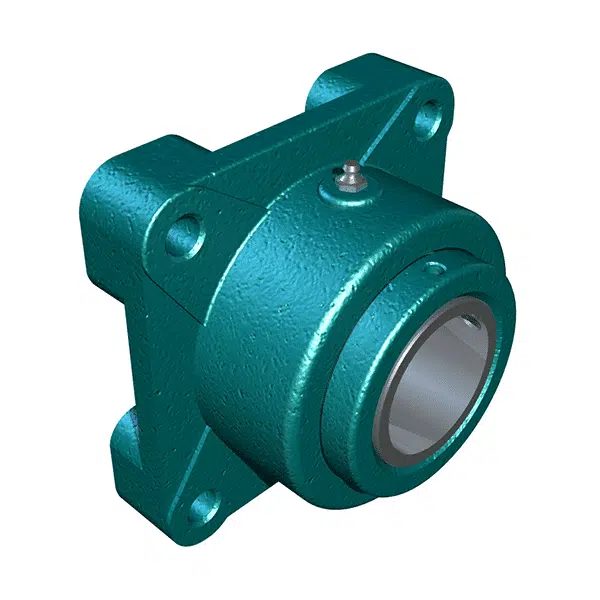

Flanged roller bearings are mounted directly to standard trough ends on the drive end of a screw conveyor. The flanged roller bearing housing contains two sets of tapered bearings that are designed to withstand the thrust of the bulk material being conveyed.

End Bearings - Flanged Roller Bearing

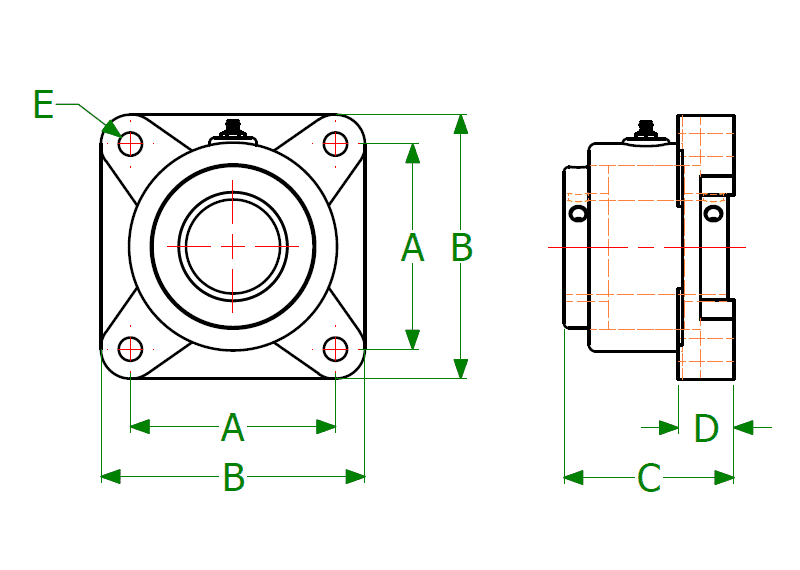

Dimensional Drawing for End Bearings - Flanged Roller Bearing

CAD Configurator
  • Model
    Number
  • Shaft Dia.
    (Bore)
  • A
  • B
  • C
  • D
  • E Bolt
    Diameter
    • EBF112R

    • Shaft Diameter (Bore): 1-1/2"
    • A: 4–1/8"
    • B: 5-3/8"
    • C: 3-3/8"
    • D: 1-3/16"
    • E Bolt Diameter: 1/2"
    • EBF2716R

    • Shaft Diameter (Bore): 2-7/16"
    • A: 5-3/8"
    • B: 6-7/8"
    • C: 4"
    • D: 1-1/2"
    • E Bolt Diameter: 5/8"
    • EBF2R

    • Shaft Diameter (Bore): 2"
    • A: 4–3/8"
    • B: 5-5/8"
    • C: 3-1/2"
    • D: 1-3/16"
    • E Bolt Diameter: 1/2"
    • EBF3716R

    • Shaft Diameter (Bore): 3-7/16"
    • A: 7"
    • B: 9-1/4"
    • C: 5"
    • D: 1-7/8"
    • E Bolt Diameter: 3/4"
    • EBF3R

    • Shaft Diameter (Bore): 3"
    • A: 6 "
    • B: 7-3/4"
    • C: 4-1/2"
    • D: 1-5/8"
    • E Bolt Diameter: 3/4"
