Feeder Shrouds

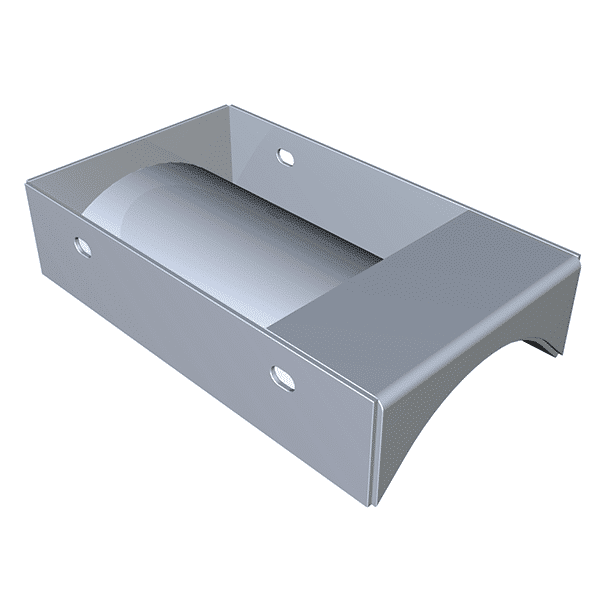

Feeder shrouds create a tubular cross section for screw feeders and steeply inclined screw conveyors. Standard covers can be used with shrouds.

Feeder Shrouds

Dimensional Drawing for Feeder Shrouds

CAD Configurator
  • Model
    Number
  • Conveyor
    Diameter
  • Cover
    Thickness
  • A •
  • B •
  • C •
  • D
    • COV12316USH

    • Conveyor Diameter: 12"
    • Cover Thickness: 3/16"
    • A •: 18"
    • B •: 13"
    • C •: 7-3/4"
    • D: 24"
    • COV14316USH

    • Conveyor Diameter: 14"
    • Cover Thickness: 3/16"
    • A •: 20"
    • B •: 15"
    • C •: 9-1/4"
    • D: 28"
    • COV16316USH

    • Conveyor Diameter: 16"
    • Cover Thickness: 3/16"
    • A •: 22"
    • B •: 17"
    • C •: 10-5/8"
    • D: 32"
    • COV18316USH

    • Conveyor Diameter: 18"
    • Cover Thickness: 3/16"
    • A •: 25"
    • B •: 19"
    • C •: 12-1/8"
    • D: 36"
    • COV20316USH

    • Conveyor Diameter: 20"
    • Cover Thickness: 3/16"
    • A •: 27"
    • B •: 21"
    • C •: 13-1/2"
    • D: 40"
    • COV24316USH

    • Conveyor Diameter: 24"
    • Cover Thickness: 3/16"
    • A •: 31"
    • B •: 25"
    • C •: 16-1/2"
    • D: 48"
    • COV612USH

    • Conveyor Diameter: 6"
    • Cover Thickness: 12 GA
    • A •: 10-1/2"
    • B •: 7"
    • C •: 4-1/2"
    • D: 1/2"
    • COV9316USH

    • Conveyor Diameter: 9"
    • Cover Thickness: 3/16"
    • A •: 14"
    • B •: 10"
    • C •: 6-1/8"
    • D: 18"
