Conveying System for Wet Alumina Cake

General Description

GH Power, located in Hamilton, Ontario, is an innovative clean energy company developing hydrogen-based energy generation systems. Their patented process produces zero-emission electricity and green hydrogen by utilizing aluminum and water, with no greenhouse gas emissions. As part of their commitment to building sustainable, cutting-edge energy solutions, GH Power needed a robust, efficient material handling system to convey aluminum hydroxide slurry – a challenging, sticky material generated during the process.

Flexicon Corporation was selected to provide the material handling equipment for a new processing line. With several years of partnership on a variety of projects, Flexicon chose KWS to provide a dependable and custom-engineered conveying solution. Flexicon and GH Power trusted KWS for our extensive experience in handling difficult bulk materials and our ability to deliver turnkey equipment on time and to specification.

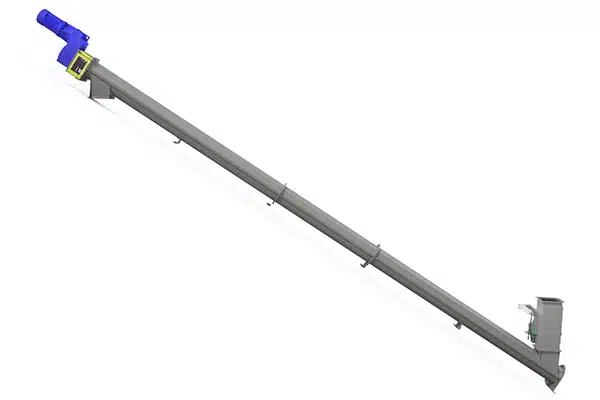

KWS Shaftless Screw Conveyor is Ideal for Conveying Sticky Aluminum Hydroxide Slurry

Design Parameters

Product Type: Wet Alumina Cake (Aluminum Hydroxide Slurry)
Material Density: 70 Lbs. per Cubic Foot
Conveyor System Capacity: 43 Cubic Feet per Hour
Duty: Continuous

KWS Advantages

Flexicon and GH Power chose KWS because of our reputation for solving the most demanding bulk material handling challenges. With over 50 years of experience, KWS has engineered conveying systems for a wide range of industries, including renewable energy and chemical processing.

KWS’s ability to design and deliver equipment that meets exacting performance and durability requirements—while maintaining fast lead times—set us apart from the competition. Our in-house engineering team worked closely with Flexicon to understand GH Power’s operations to ensure optimal performance and integration with their process equipment

All equipment was designed, manufactured, and tested in our Burleson, Texas facility to ensure the highest quality standards. Flexicon and GH Power were confident in our ability to deliver reliable performance and long-lasting service life with minimal maintenance.

KWS Special Features

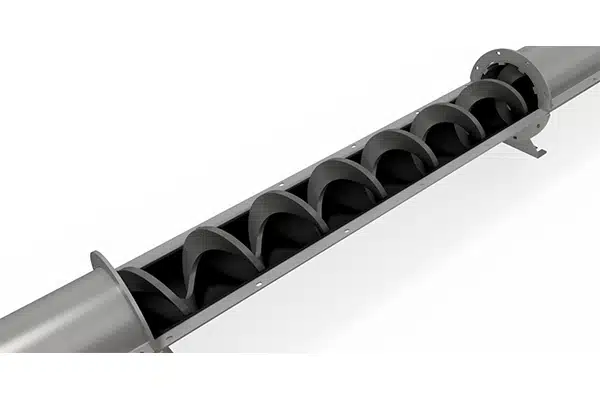

KWS provided a heavy-duty 304 stainless steel shaftless screw conveyor that is ideal for handling sticky and fibrous materials like aluminum hydroxide slurry. Without a center shaft, material buildup and clogging are virtually eliminated, allowing for continuous, non-stop operation. The shaftless screw conveyor design also simplifies cleaning and maintenance.

To resist abrasion and improve material flow, KWS lined the troughs with Xylethon polymer liners. Xylethon offers superior wear resistance and the lowest coefficient of friction in the industry, which is critical when conveying sticky and abrasive slurries. The liners significantly extend the life of the trough while reducing energy consumption.

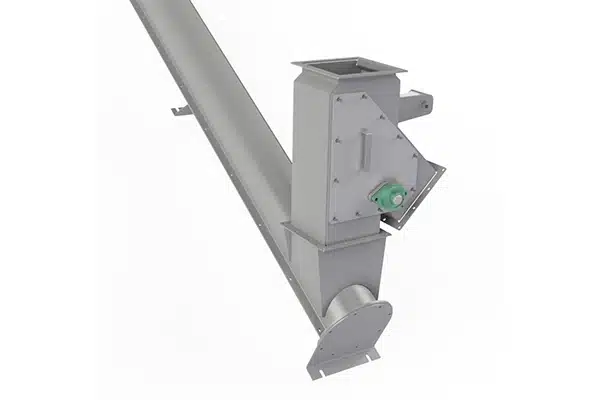

KWS designed and supplied a pneumatically actuated gravity diverter valve to direct material not meeting specifications outside the processing line. These diverters are built for heavy-duty applications and ensure precise, reliable operation with minimal operator intervention. The pneumatic actuator was supplied with reed switches to provide constant feedback of the diverter plate position to plant operations.

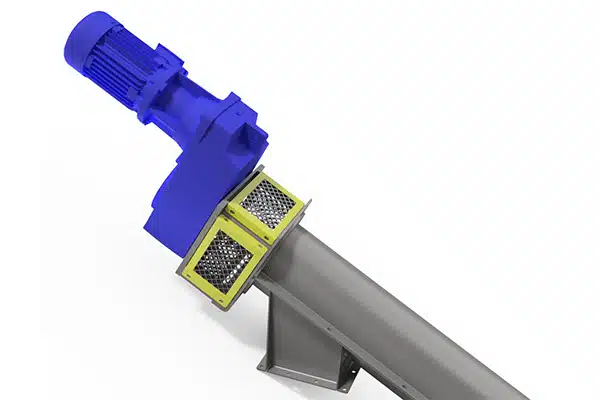

To protect personnel and ensure compliance with safety regulations, KWS equipped all rotating assemblies with OSHA-compliant shaft guards. Our guarding systems are easily removable for maintenance access and provide maximum operator safety.
