9SF424R

9SF424R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

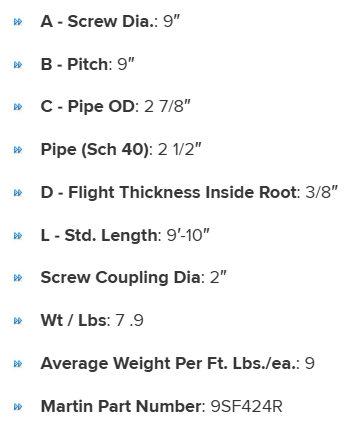

Specifications

A - Diameter Tolerance Minus

1/4"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

A - Screw Dia.

9"

Martin Part Number

9SF424R

Average Weight Per Ft. Lbs./ea.

9

Pipe Sch 40 - C- Pipe OD

2 7/8"

Pipe Sch 40 - Size

2 1/2"

D - Flight Thcknss Inside Root

3/8"

B - Pitch

9"

Screw Coupling Dia

2"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1/2"

Wt / Lbs

7 .9
