9S316R

9S316R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

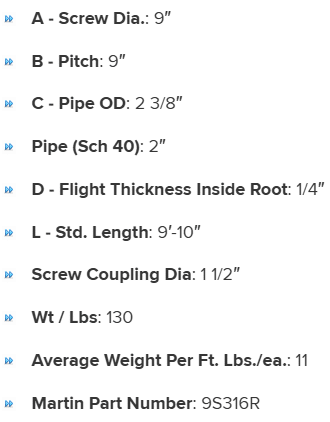

Specifications

A - Diameter Tolerance Minus

3/16"

A - Diameter Tolerance Plus

1/16"

L - Std. Length

9’-10"

A - Screw Dia.

9"

Martin Part Number

9S316R

Average Weight Per Ft. Lbs./ea.

11

Pipe Sch 40 - C- Pipe OD

2 3/8"

Pipe Sch 40 - Size

2"

D - Flight Thcknss Inside Root

1/4"

B - Pitch

9"

Screw Coupling Dia

1 1/2"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

1/2"

Wt / Lbs

130
