16S624R

16S624R is a Sectional Flighting & Screws product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

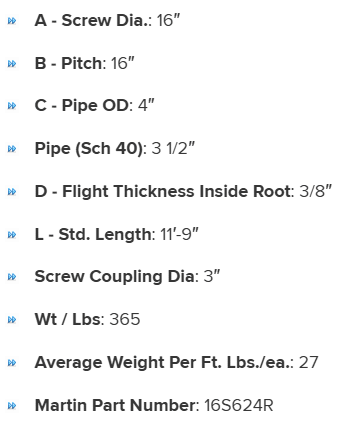

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

A - Screw Dia.

16"

Martin Part Number

16S624R

Average Weight Per Ft. Lbs./ea.

27

Pipe Sch 40 - C- Pipe OD

4"

Pipe Sch 40 - Size

3 1/2"

D - Flight Thcknss Inside Root

3/8"

B - Pitch

16"

Screw Coupling Dia

3"

B - Pitch Tolerance Minus

1/4"

B - Pitch Tolerance Plus

3/4"

Wt / Lbs

365
