HGR242263716GP

HGR242263716GP is a Style 226 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for HGR242263716GP

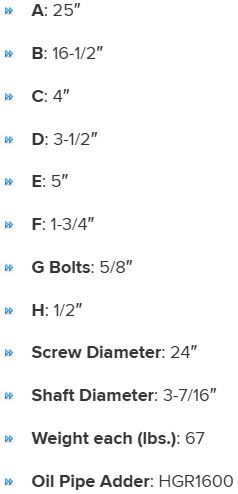

Specifications

C

4"

A

25"

Oil Pipe Adder

HGR1600

B

16-1/2"

D

3-1/2"

Screw Diameter

24"

Shaft Diameter

3-7/16"

E

5"

F

1-3/4"

Weight each (lbs.)

67

G Bolts

5/8"

H

1/2"
