HGR182263

HGR182263 is a Style 226 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
hangers-226

Download CAD files

Dimensional Drawing for CEMA Stock Components

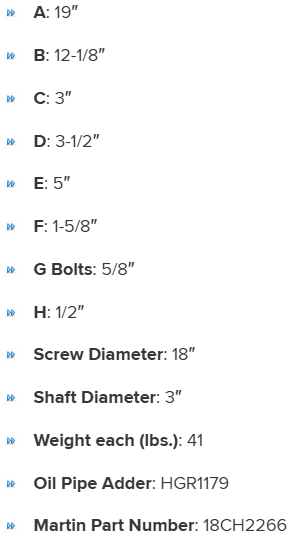

Specifications

A

19"

C

3"

Martin Part Number

18CH2266

Oil Pipe Adder

HGR1179

B

12-1/8"

D

3-1/2"

Screw Diameter

18"

Shaft Diameter

3"

E

5"

F

1-5/8"

Weight each (lbs.)

41

G Bolts

5/8"

H

1/2"
