HGR162263GP

HGR162263GP is a Style 226 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
hangers-226

Download CAD files

Dimensional Drawing for CEMA Stock Components

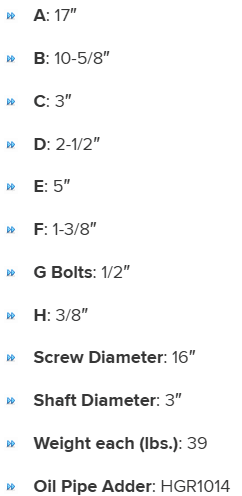

Specifications

A

17"

C

3"

Oil Pipe Adder

HGR1014

B

10-5/8"

D

2-1/2"

Screw Diameter

16"

Shaft Diameter

3"

E

5"

F

1-3/8"

Weight each (lbs.)

39

G Bolts

1/2"

H

3/8"
