HGR9216112

HGR9216112 is a Style 216 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
hangers-216

Download CAD files

Dimensional Drawing for CEMA Stock Components

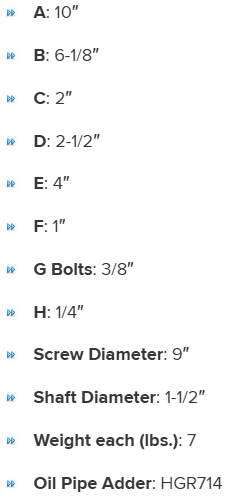

Specifications

A

10"

C

2"

Oil Pipe Adder

HGR714

B

6-1/8"

D

2-1/2"

Screw Diameter

9"

Shaft Diameter

1-1/2"

E

4"

F

1"

Weight each (lbs.)

7

G Bolts

3/8"

H

1/4"
