HGR122163GP

HGR122163GP is a Style 216 Hangers for U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
hangers-216

Download CAD files

Dimensional Drawing for CEMA Stock Components

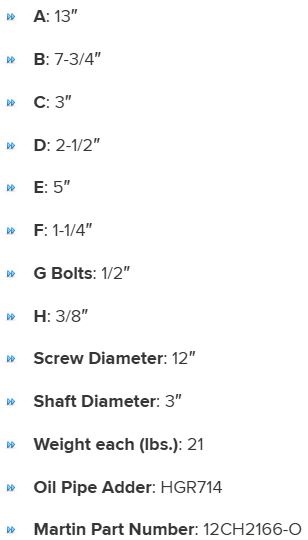

Specifications

A

13"

C

3"

Martin Part Number

12CH2166-O

Oil Pipe Adder

HGR714

B

7-3/4"

D

2-1/2"

Screw Diameter

12"

Shaft Diameter

3"

E

5"

F

1-1/4"

Weight each (lbs.)

21

G Bolts

1/2"

H

3/8"
