HGB2262716H

HGB2262716H is a Hard Iron Hanger Bearings product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Style-226-Hard-Iron

Download CAD files

Dimensional Drawing for CEMA Stock Components

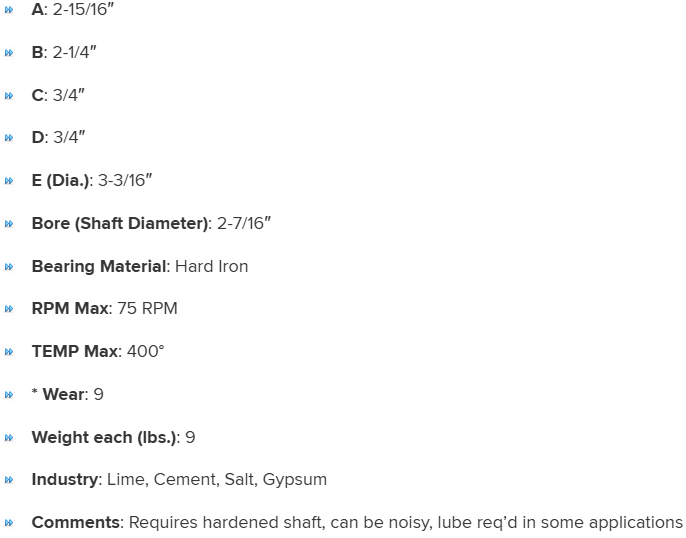

Specifications

A

2-15/16"

C

3/4"

Comments

Requires hardened shaft, can be noisy, lube req'd in some applications

B

2-1/4"

D

3/4"

RPM Max

75 RPM

Bearing Material

Hard Iron

E (Dia.)

3-3/16"

TEMP Max

400°

Bore (Shaft Diameter)

2-7/16"

* Wear

9

Weight each (lbs.)

9

Industry

Lime, Cement, Salt, Gypsum
