Nord Right-Angle Helical Bevel Screw Conveyor Drives

Nord Right-Angle Helical Bevel (RHB) gearmotors provide a 90-degree offset between the motor shaft and output shaft, ideal for applications that require compact footprints. RHB gearmotors offer excellent reliability, low maintenance, and a long service life, while also delivering impressive axial and radial load capacities. Nord’s modular design can be customized to meet specific power (HP) and speed (RPM) requirements.

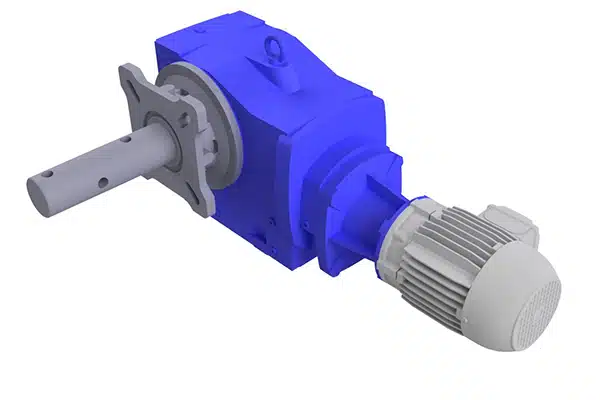

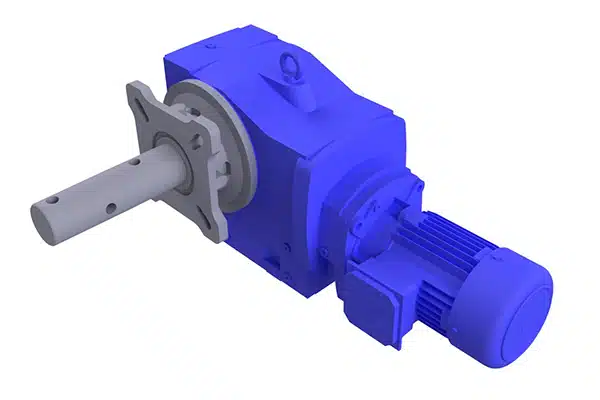

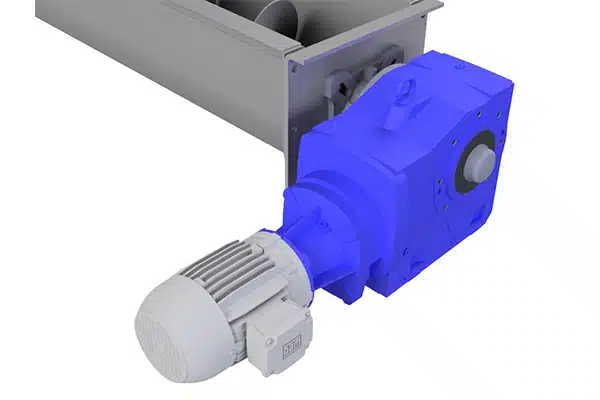

The right-angle design of the RHB gearmotor allows the overall length of a screw conveyor to be shorter than a traditional parallel shaft gearmotor such as the Nord Clincher gearmotor. Nord offers a wide variety of mounting options, including a CEMA standard screw conveyor adaptor. RHB gearmotors are available with space-saving integral motors or C-face adapters for a wide variety of third-party motor options.

Features

Right Angle Design – For applications that require compact footprints and flexible installation

Modular Design – Accommodates numerous input options, including integral motors and adaptors

Quadrilip Seal System – 3 lip seals plus a grease barrier seals both input and output shafts

Benefits

Long Life Span – Service life is extended with high quality gearing and spherical roller bearings

Configure for Multiple Applications – Integral and C-Face motors are adaptable for most installations

Low Maintenance – Rugged, leak-proof design is almost maintenance free

Nord RHB Right Angle Gearmotors and Reducers Offer Excellent Reliability, and Long Service Life
