TUF12316ARWL

TUF12316ARWL is a Rendering U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Stock Components for the Rendering Industry.

3D Preview Trigger | KWS Manufacturing
U Trough Formed Flange | KWS Manufacturing

Download CAD files

Dimensional Drawing for CEMA Stock Components

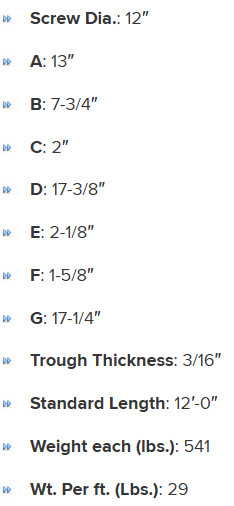

Specifications

A

13"

C

2"

B

7-3/4"

D

17-3/8"

Screw Dia.

12"

E

2-1/8"

Standard Length

12’-0"

Trough Thickness

3/16"

F

1-5/8"

Weight each (lbs.)

541

G

17-1/4"

Wt. Per ft. (Lbs.)

29
