12S624R80CW23B

12S624R80CW23B is a Rendering Screws product manufactured by KWS Mfg. Request a Quote below for this and other Stock Components for the Rendering Industry.

3D Preview Trigger | KWS Manufacturing
sectional-screw-and-flighting

Download CAD files

Dimensional Drawing for CEMA Stock Components

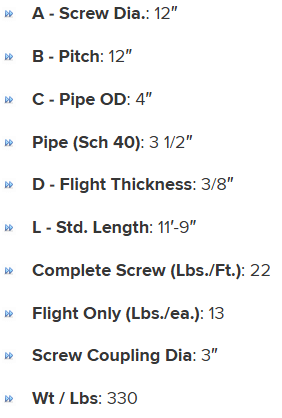

Specifications

A - Diameter Tolerance Minus

3/8"

A - Diameter Tolerance Plus

1/8"

L - Std. Length

11’-9"

C - Pipe Sch 40 - Pipe OD

4"

A - Screw Diameter

12"

Complete Screw (Lbs./Ft.)

22

Pipe Sch 40 - Size

3 1/2"

B - Pitch

12"

D - Flight Thickness

3/8"

B - Pitch Tolerance Minus

1/4"

Screw Coupling Diameter

3"

B - Pitch Tolerance Plus

3/4"

Flight Only (Lbs./ea.)

13

Wt / Lbs

330
