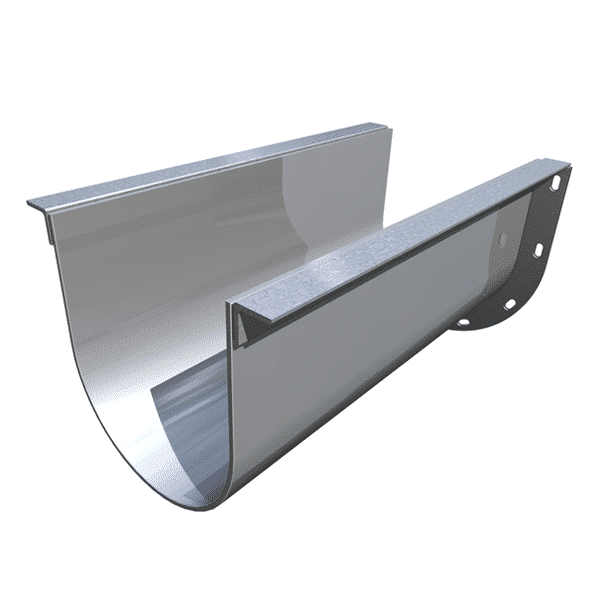

U-Troughs
U-troughs are the most common type of trough for screw conveyors and screw feeders. The U– trough design is simple, economical and provides access for maintenance. Plate end flanges are CNC cut and jig-welded to ensure exact alignment with adjacent trough sections.
