TUF9316

TUF9316 is a Formed Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

U Trough Formed Flange | KWS Manufacturing

Download CAD files

Dimensional Drawing for CEMA Stock Components

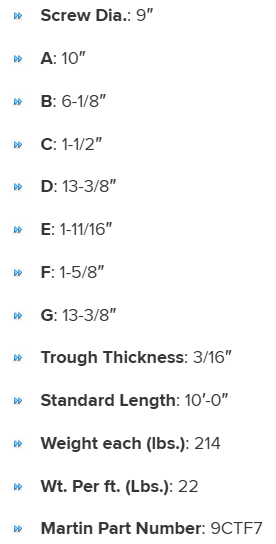

Specifications

A

10"

C

1-1/2"

Martin Part Number

9CTF7

B

6-1/8"

D

13-3/8"

Screw Dia.

9"

E

1-11/16"

Standard Length

10’-0"

Trough Thickness

3/16"

F

1-5/8"

Weight each (lbs.)

214

G

13-3/8"

Wt. Per ft. (Lbs.)

22
