TUF14316

TUF14316 is a Formed Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Formed Flange | KWS Manufacturing

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

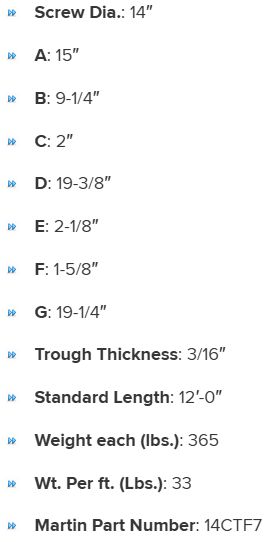

Specifications

A

15"
C

2"
Martin Part Number

14CTF7
B

9-1/4"
D

19-3/8"
Screw Dia.

14"
E

2-1/8"
Standard Length

12’-0"
Trough Thickness

3/16"
F

1-5/8"
Weight each (lbs.)

365
G

19-1/4"
Wt. Per ft. (Lbs.)

33
