TUA614

TUA614 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

u-trough-angled-flange

Download CAD files

Dimensional Drawing for CEMA Stock Components

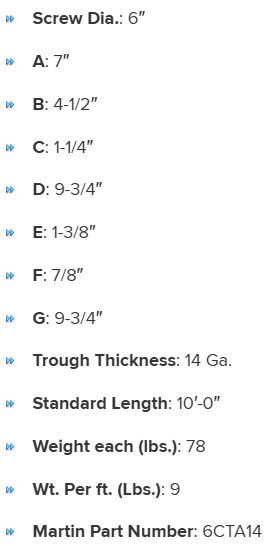

Specifications

A

7"

C

1-1/4"

Martin Part Number

6CTA14

B

4-1/2"

D

9-3/4"

Screw Dia.

6"

E

1-3/8"

Standard Length

10’-0"

Trough Thickness

14 Ga.

F

7/8"

Weight each (lbs.)

78

G

9-3/4"

Wt. Per ft. (Lbs.)

9
