TUA20316

TUA20316 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Angled Flange - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

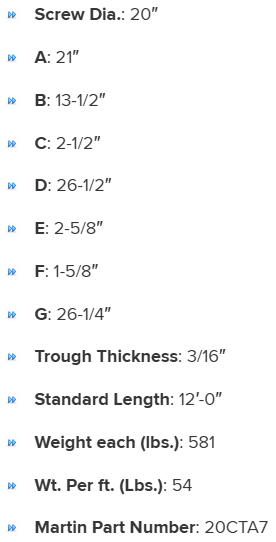

Specifications

A

21"
C

2-1/2"
Martin Part Number

20CTA7
B

13-1/2"
D

26-1/2"
Screw Dia.

20"
E

2-5/8"
Standard Length

12’-0"
Trough Thickness

3/16"
F

1-5/8"
Weight each (lbs.)

581
G

26-1/4"
Wt. Per ft. (Lbs.)

54
