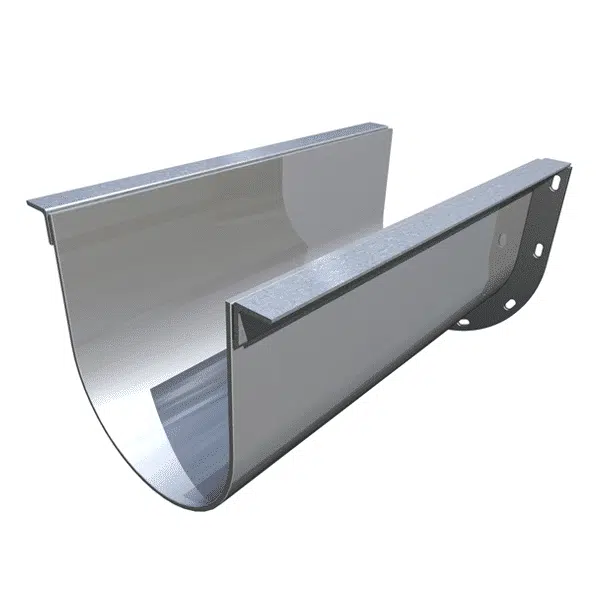

TUA1810

TUA1810 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
u-trough-angled-flange

Download CAD files

Add to quote

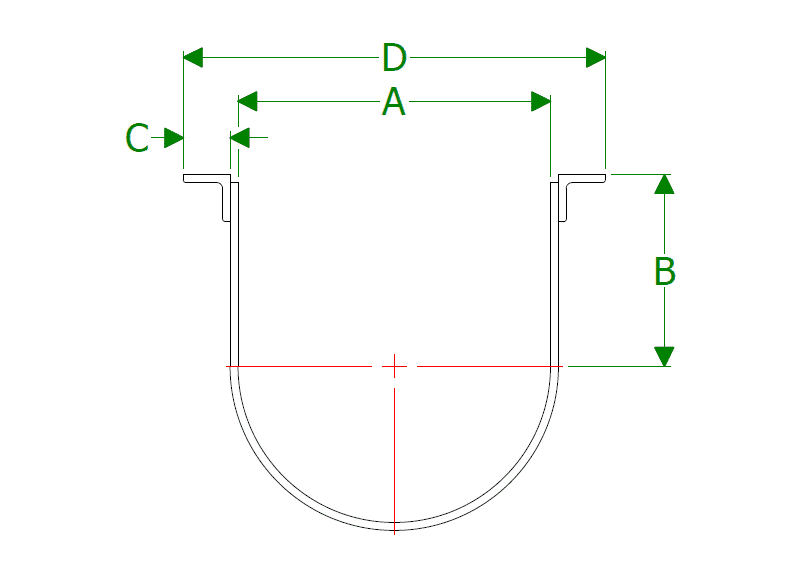

Dimensional Drawing for CEMA Stock Components

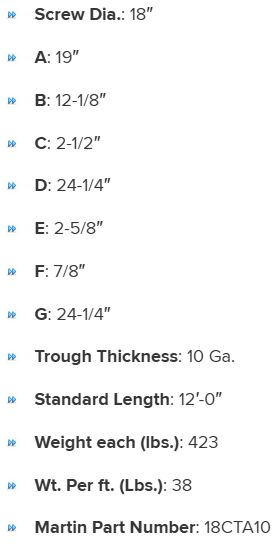

Specifications

A

19"
C

2-1/2"
Martin Part Number

18CTA10
B

12-1/8"
D

24-1/4"
Screw Dia.

18"
E

2-5/8"
Standard Length

12’-0"
Trough Thickness

10 Ga.
F

7/8"
Weight each (lbs.)

423
G

24-1/4"
Wt. Per ft. (Lbs.)

38
