TUA1212

TUA1212 is a Angle Flange U-Troughs product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
u-trough-angled-flange

Download CAD files

Dimensional Drawing for CEMA Stock Components

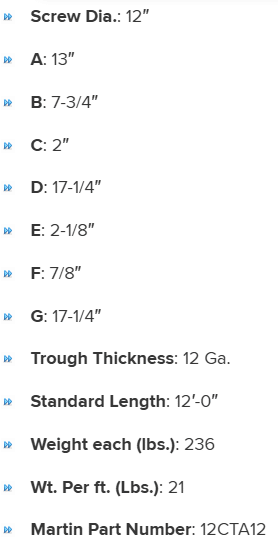

Specifications

A

13"

C

2"

Martin Part Number

12CTA12

B

7-3/4"

D

17-1/4"

Screw Dia.

12"

E

2-1/8"

Standard Length

12’-0"

Trough Thickness

12 Ga.

F

7/8"

Weight each (lbs.)

236

G

17-1/4"

Wt. Per ft. (Lbs.)

21
