SAD12

SAD12 is a Saddles product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
saddles

Download CAD files

Dimensional Drawing for CEMA Stock Components

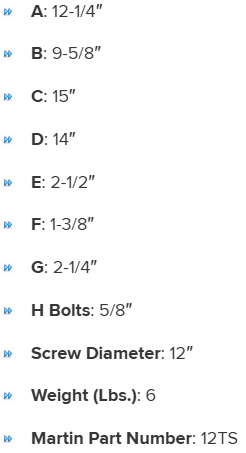

Specifications

A

12-1/4"

C

15"

Martin Part Number

12TS

B

9-5/8"

D

14"

Screw Diameter

12"

E

2-1/2"

F

1-3/8"

Weight (Lbs.)

6

G Bolts

2-1/4"

H Bolts

5/8"
