TEFO41UBB

TEFO41UBB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Dimensional Drawing for CEMA Stock Components

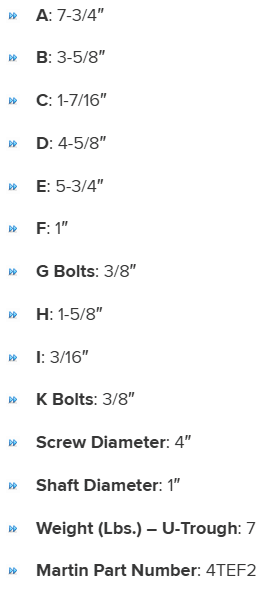

Specifications

A

7-3/4"

C

1-7/16"

J

X

K Bolts

3/8"

L

X

Martin Part Number

4TEF2

B

3-5/8"

D

4-5/8"

Screw Diameter

4"

Shaft Diameter

1"

E

5-3/4"

F

1"

G Bolts

3/8"

H

1-5/8"

Weight (Lbs.) - Flared Trough

N/A

I

3/16"

Weight (Lbs.) - U-Trough

7
