TEFO243716UBBRB

TEFO243716UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Dimensional Drawing for CEMA Stock Components

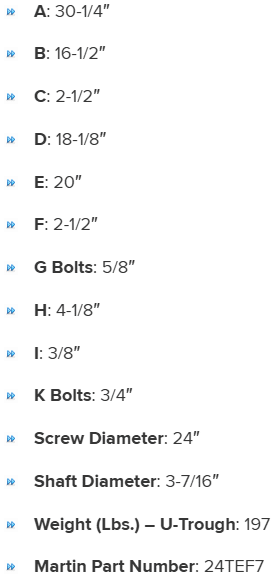

Specifications

A

30-1/4"

C

2-1/2"

J

45-1/2"

K Bolts

3/4"

L

16-1/2"

Martin Part Number

24TEF7

B

16-1/2"

D

18-1/8"

Screw Diameter

24"

Shaft Diameter

3-7/16"

E

20"

F

2-1/2"

G Bolts

5/8"

H

4-1/8"

Weight (Lbs.) - Flared Trough

213

I

3/8"

Weight (Lbs.) - U-Trough

197
