TEFO203716UBBRB

TEFO203716UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
Trough Ends With Feet - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

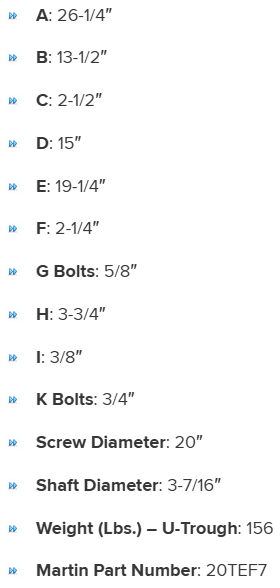

Specifications

A

26-1/4"
C

2-1/2"
J

39-1/2"
K Bolts

3/4"
L

13-1/2"
Martin Part Number

20TEF7
B

13-1/2"
D

15"
Screw Diameter

20"
Shaft Diameter

3-7/16"
E

19-1/4"
F

2-1/4"
G Bolts

5/8"
H

3-3/4"
Weight (Lbs.) - Flared Trough

169
I

3/8"
Weight (Lbs.) - U-Trough

156
