TEFO183716UBBRB

TEFO183716UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

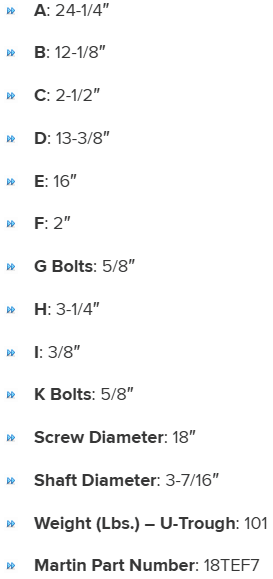

Specifications

A

24-1/4"
C

2-1/2"
J

36-1/2"
K Bolts

5/8"
L

12-1/8"
Martin Part Number

18TEF7
B

12-1/8"
D

13-3/8"
Screw Diameter

18"
Shaft Diameter

3-7/16"
E

16"
F

2"
G Bolts

5/8"
H

3-1/4"
Weight (Lbs.) - Flared Trough

104
I

3/8"
Weight (Lbs.) - U-Trough

101
