TEFO163UBBRB

TEFO163UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

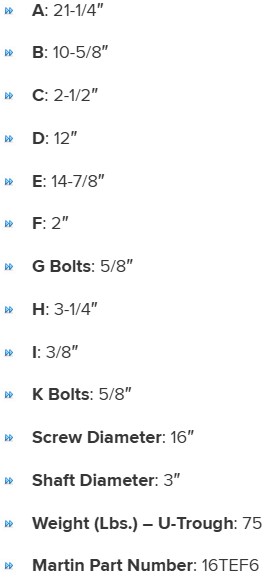

Specifications

A

21-1/4"
C

2-1/2"
J

32-1/2"
K Bolts

5/8"
L

11-1/2"
Martin Part Number

16TEF6
B

10-5/8"
D

12"
Screw Diameter

16"
Shaft Diameter

3"
E

14-7/8"
F

2"
G Bolts

5/8"
H

3-1/4"
Weight (Lbs.) - Flared Trough

85
I

3/8"
Weight (Lbs.) - U-Trough

75
