TEFO123UBBRB

TEFO123UBBRB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

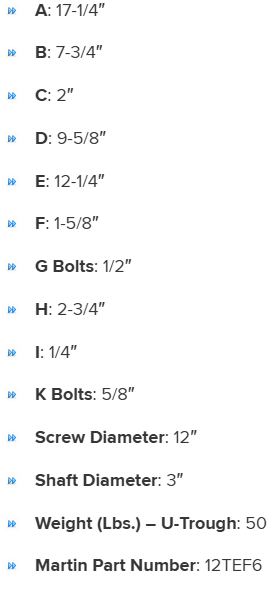

Specifications

A

17-1/4"
C

2"
J

26-3/8"
K Bolts

5/8"
L

10"
Martin Part Number

12TEF6
B

7-3/4"
D

9-5/8"
Screw Diameter

12"
Shaft Diameter

3"
E

12-1/4"
F

1-5/8"
G Bolts

1/2"
H

2-3/4"
Weight (Lbs.) - Flared Trough

56
I

1/4"
Weight (Lbs.) - U-Trough

50
