TEFO122UBB

TEFO122UBB is a Trough Ends with Foot product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
trough-ends-with-feet

Download CAD files

Dimensional Drawing for CEMA Stock Components

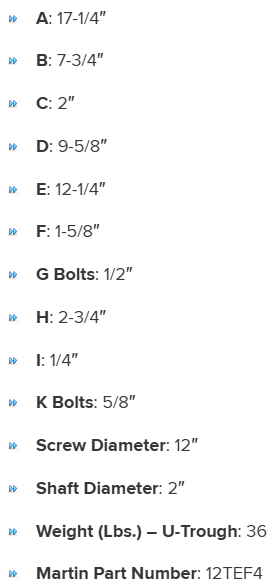

Specifications

A

17-1/4"

C

2"

J

26-3/8"

K Bolts

5/8"

L

10"

Martin Part Number

12TEF4

B

7-3/4"

D

9-5/8"

Screw Diameter

12"

Shaft Diameter

2"

E

12-1/4"

F

1-5/8"

G Bolts

1/2"

H

2-3/4"

Weight (Lbs.) - Flared Trough

43

I

1/4"

Weight (Lbs.) - U-Trough

36
