PEF9UMS3

PEF9UMS3 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for PEF9UMS3

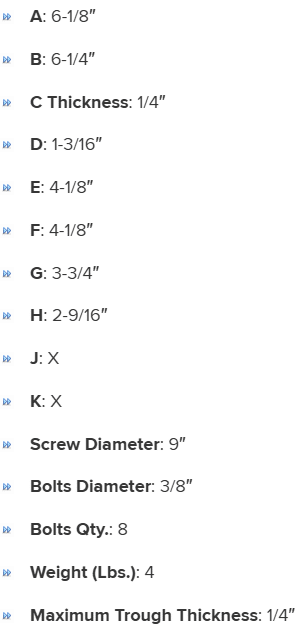

Specifications

A

6-1/8"

J

X

K

X

C Thickness

1/4"

Maximum Trough Thickness

1/4"

B

6-1/4"

D

1-3/16"

Screw Diameter

9"

E

4-1/8"

Bolts Diameter

3/8"

Bolts Qty.

8

F

4-1/8"

Weight (Lbs.)

4

G

3-3/4"

H

2-9/16"
