PEF9UMS10

PEF9UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

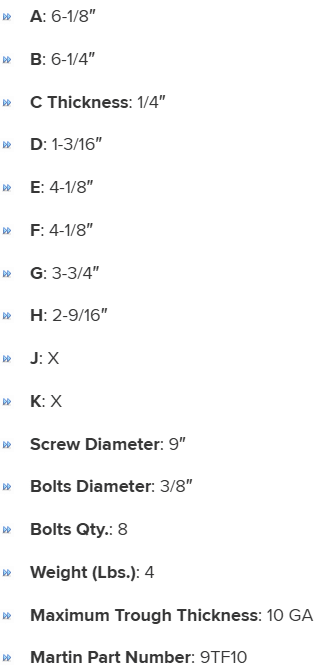

Specifications

J

X
A

6-1/8"
K

X
C Thickness

1/4"
Martin Part Number

9TF10
Maximum Trough Thickness

10 GA
B

6-1/4"
D

1-3/16"
Screw Diameter

9"
E

4-1/8"
Bolts Diameter

3/8"
Bolts Qty.

8
F

4-1/8"
G

3-3/4"
Weight (Lbs.)

4
H

2-9/16"
