PEF6UMS

PEF6UMS is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange - KWS Manufacturing Company, LLC

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

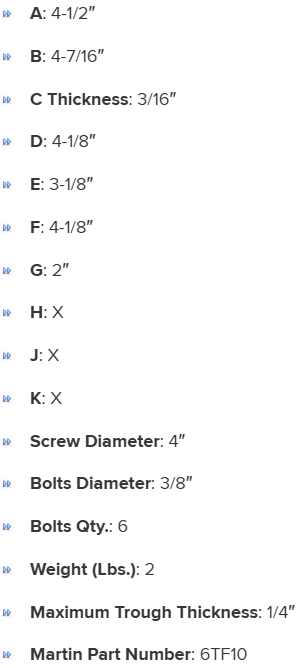

Specifications

J

X
A

4-1/2"
K

X
C Thickness

3/16"
Martin Part Number

6TF10
Maximum Trough Thickness

1/4"
B

4-7/16"
D

1-1/32"
Screw Diameter

6"
E

4-1/8"
Bolts Diameter

3/8"
Bolts Qty.

6
F

4-1/16"
G

2"
Weight (Lbs.)

2
H

X
