PEF4UMS

PEF4UMS is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange | KWS Manufacturing

Download CAD files

Dimensional Drawing for CEMA Stock Components

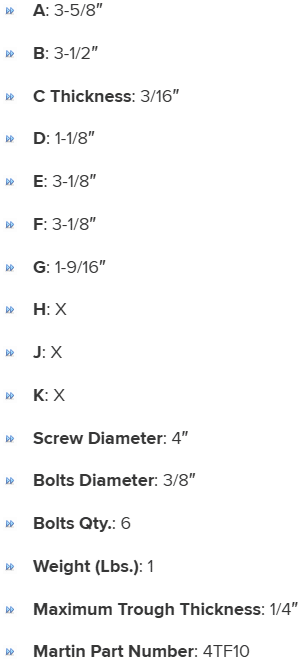

Specifications

J

X

A

3-5/8"

K

X

C Thickness

3/16"

Martin Part Number

4TF10

Maximum Trough Thickness

1/4"

B

3-1/2"

D

1-1/8"

Screw Diameter

4"

E

3-1/8"

Bolts Diameter

3/8"

Bolts Qty.

6

F

3-1/8"

G

1-9/16"

Weight (Lbs.)

1

H

X
