PEF20UMS10

PEF20UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange - KWS Manufacturing Company, LLC

Download CAD files

Add to quote

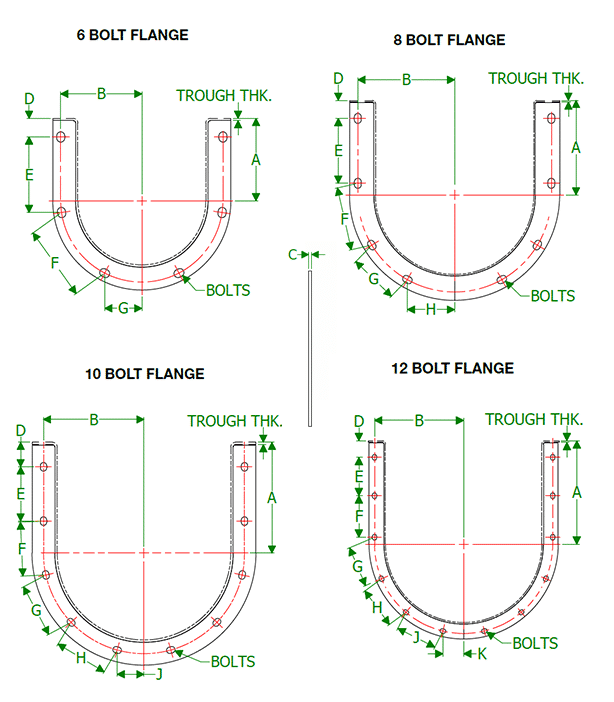

Dimensional Drawing for CEMA Stock Components

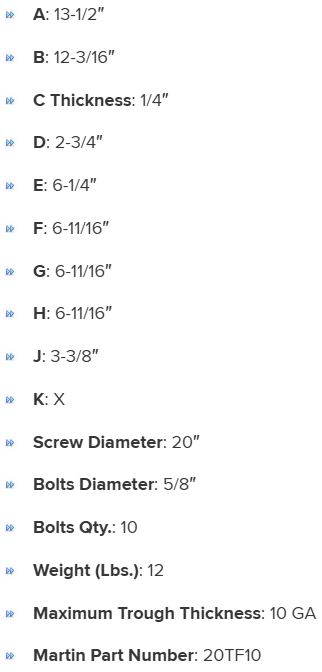

Specifications

J

3-3/8"
A

13-1/2"
K

X
C Thickness

1/4"
Martin Part Number

20TF10
Maximum Trough Thickness

10 GA
B

12-3/16"
D

2-3/4"
Screw Diameter

20"
E

6-1/4"
Bolts Diameter

5/8"
Bolts Qty.

10
F

6-11/16"
G

6-11/16"
Weight (Lbs.)

12
H

6-11/16"
