PEF18UMS10

PEF18UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

U Trough Plate End Flange | KWS Manufacturing

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

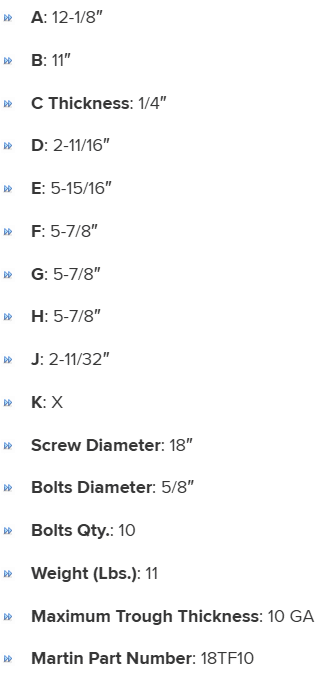

Specifications

J

2-11/32"
A

12-1/8"
K

X
C Thickness

1/4"
Martin Part Number

18TF10
Maximum Trough Thickness

10 GA
B

11"
D

2-11/16"
Screw Diameter

18"
E

5-15/16"
Bolts Diameter

5/8"
Bolts Qty.

10
F

5-7/8"
G

5-7/8"
Weight (Lbs.)

11
H

5-7/8"
