PEF16UMS10

PEF16UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Dimensional Diagram for PEF16UMS10

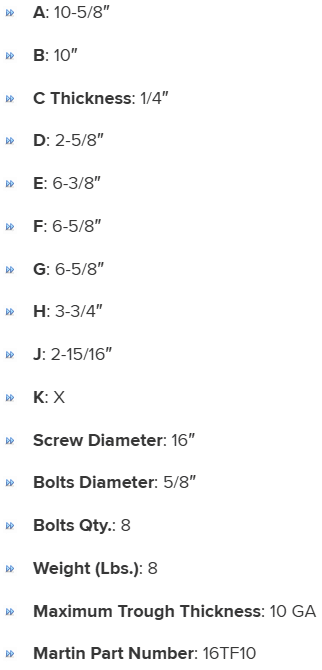

Specifications

A

10-5/8"

J

2-15/16"

K

X

Martin Part Number

16TF10

C Thickness

1/4"

Maximum Trough Thickness

10 GA

B

10"

D

2-5/8"

Screw Diameter

16"

E

6-3/8"

Bolts Diameter

5/8"

Bolts Qty.

8

F

6-5/8"

Weight (Lbs.)

8

G

6-5/8"

H

3-3/4"
