PEF14UMS10

PEF14UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange | KWS Manufacturing

Download CAD files

Add to quote
Dimensional Drawing for CEMA Stock Components

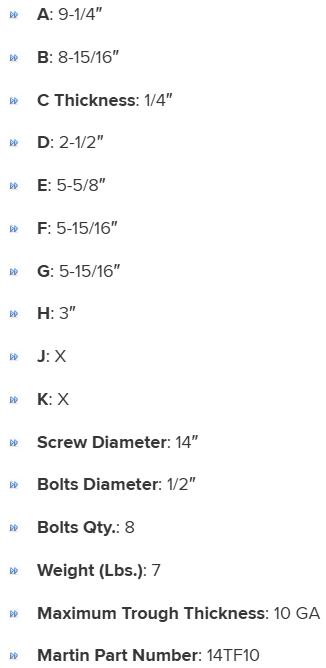

Specifications

J

X
A

9-1/4"
K

X
C Thickness

1/4"
Martin Part Number

14TF10
Maximum Trough Thickness

10 GA
B

8-15/16"
D

2-1/2"
Screw Diameter

14"
E

5-5/8"
Bolts Diameter

1/2"
Bolts Qty.

8
F

5-15/16"
G

5-15/16"
Weight (Lbs.)

7
H

3"
