PEF12UMS10

PEF12UMS10 is a U-Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

3D Preview Trigger | KWS Manufacturing
U Trough Plate End Flange | KWS Manufacturing

Download CAD files

Dimensional Drawing for CEMA Stock Components

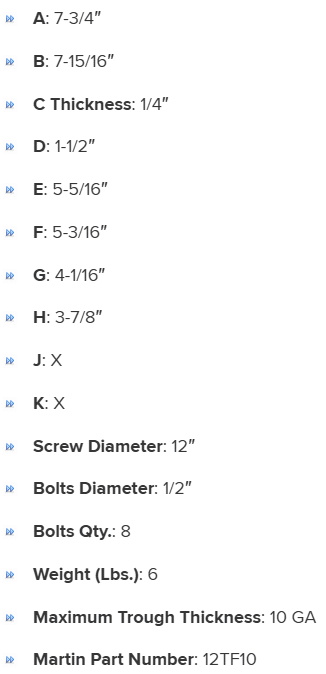

Specifications

J

X

A

7-3/4"

K

X

C Thickness

1/4"

Martin Part Number

12TF10

Maximum Trough Thickness

10 GA

B

7-15/16"

D

1-1/2"

Screw Diameter

12"

E

5-5/16"

Bolts Diameter

1/2"

Bolts Qty.

8

F

5-3/16"

G

4-1/16"

Weight (Lbs.)

6

H

3-7/8"
