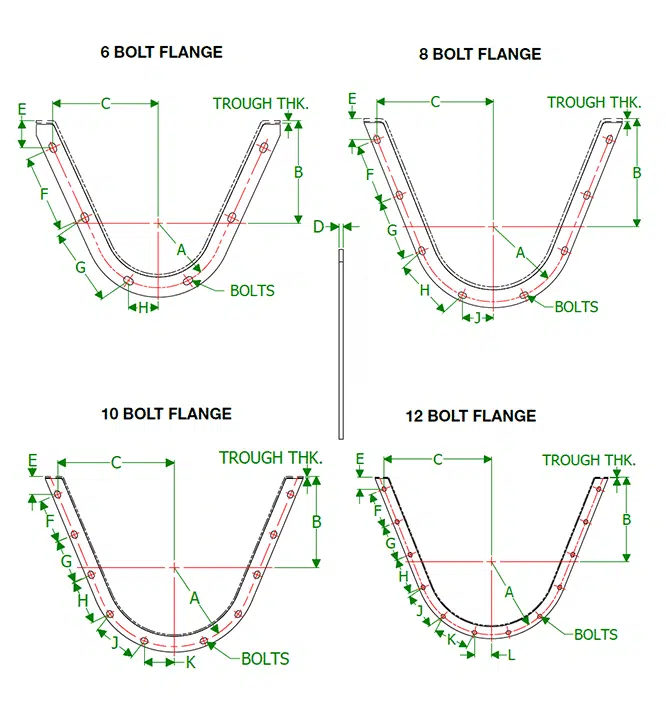

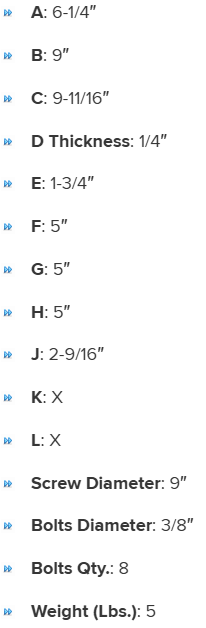

Specifications
| A | 6-1/4" |
|---|---|
| C | 9-11/16" |
| J | 2-9/16" |
| K | X |
| L | X |
| B | 9" |
| D Thickness | 1/4" |
| Screw Diameter | 9" |
| E | 1-3/4" |
| Bolts Diameter | 3/8" |
| Bolts Qty. | 8 |
| F | 5" |
| G | 5" |
| Weight (Lbs.) | 5 |
| H | 5" |
PEF9FMS

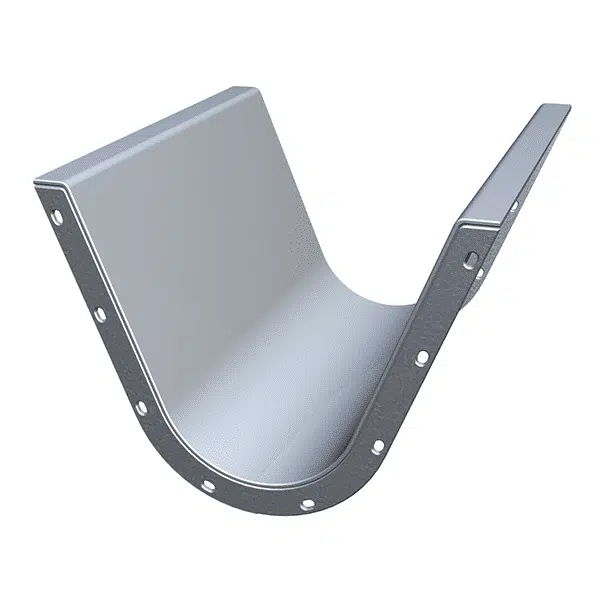

PEF9FMS is a Flared Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.
Download CAD files
