PEF6FMS

PEF6FMS is a Flared Trough Plate End Flanges product manufactured by KWS Mfg. Request a Quote below for this and other Carbon Steel Stock Components.

Flared Trough Plate End Flange | KWS Manufacturing

Download CAD files

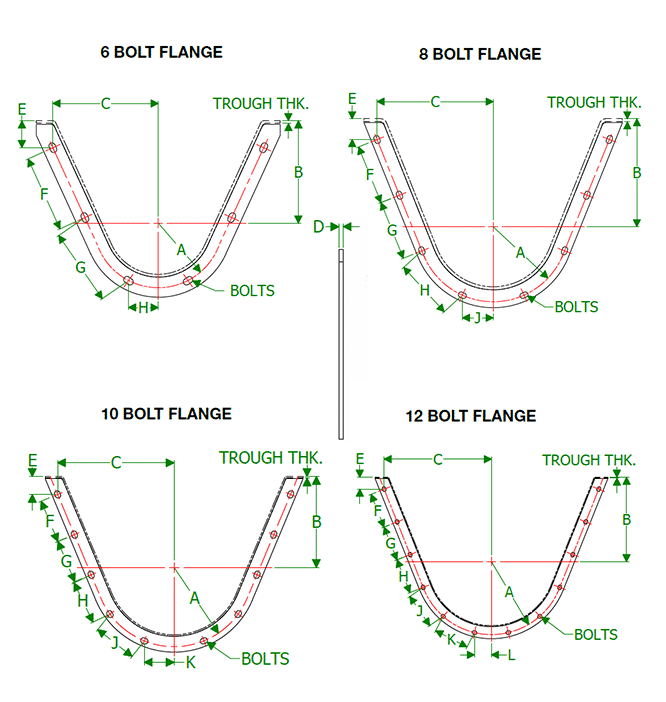

Dimensional Drawing for CEMA Stock Components

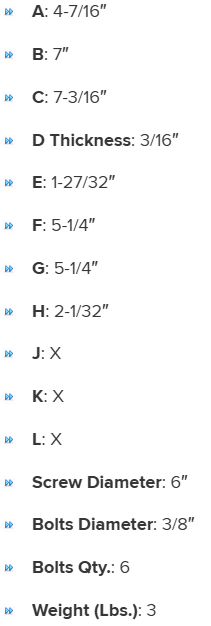

Specifications

A

4-7/16"

C

7-3/16"

J

X

K

X

L

X

B

7"

D Thickness

3/16"

Screw Diameter

6"

E

1-27/32"

Bolts Diameter

3/8"

Bolts Qty.

6

F

5-1/4"

G

5-1/4"

Weight (Lbs.)

3

H

2-1/32"
