PEF20FMS

Plate End Flanges

PEF20FMS Plate end flanges are welded to the ends of troughs so that trough sections can be connected to eachother. Plate end flanges are CNC cut and jig-welded to ensure exact alignment with other adjacent sections.

Specifications

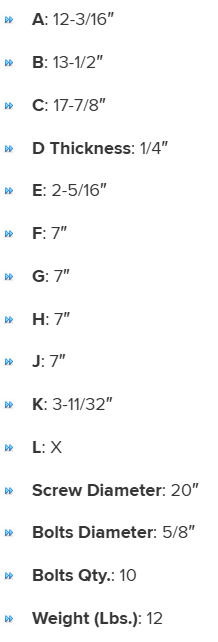

Dimensional Drawing for CEMA Stock Components PEF20FMS specifications
Add to quote
3D Preview Trigger | KWS Manufacturing
Flared Trough Plate End Flange - KWS Manufacturing Company, LLC

Download CAD files
